FlowFinder - mechanical ventilation system measurement

The FlowFinder®mk2 is the successor of the well known FlowFinder®, the benchmark of air flow measurement for balancing mechanical air supply and exhaust systems.

The new VentiFlow-mk2, with a measuring range from 10 to 100 m3/h (6 to 60 CFM), is the ideal instrument to quickly check and balance delicate domestic ventilation systems.

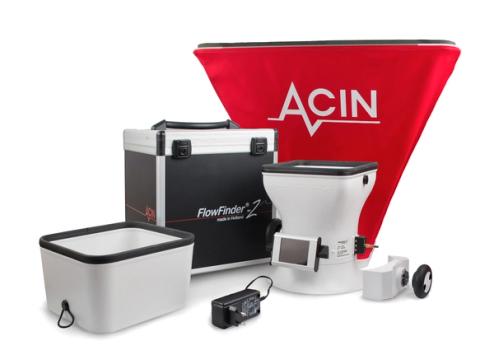

FlowFinder-mk2 Air Flow Balometer

The FlowFinder®mk2 is designed for accurate air flow measurements to balance and commission mechanical ventilation systems. The measuring principle of the FlowFinder®mk2 is based on the zero pressure compensation method.

What's included

  • Battery charger

  • Transport case

  • User manual and calibration certificate

  • MicroSD card with adapter

Price from

£2,600 GBP

per unit

Online Shop
Excluding VAT & delivery

Accurately measure air volume flow up to 100 m3/h

The FlowFinder®mk2 is designed for accurate air flow measurements to balance and commission mechanical ventilation systems. The measuring principle of the FlowFinder®mk2 is based on the zero pressure compensation method (unconditional method). With this method the resistance of the measuring instrument is compensated for by means of a controlled fan.

Get in touch to find out more about FlowFinder-mk2
  • FlowFinder in use in a classroom environment

    Fast and accurate domestic ventilation system balancing

    The FlowFinder is the benchmark of air flow measurement for balancing mechanical air supply and exhaust systems.

  • FlowFinder being help up to the ceiling in use

    Find balance with the FlowFinder

    Taking measurements with the automated FlowFinder®mk2 is very simple: place the instrument over a supply or exhaust terminal, push the button and wait 10 seconds. No zero-calibration is needed and the flow direction is automatically detected.

The FlowFinder-mk2 has many features and benefits

There are numerous benefits to using the FlowFinder-mk2 for balancing mechanical air supply and exhaust systems

Get in touch to find out more

Accurate

The FlowFinder®mk2 is designed for accurate air flow measurements to balance and commission mechanical ventilation systems.

Easy to use User Interface

The FlowFinder®mk2 has a full colour touch screen with an easy interface to set up your measurement and storage options.

Simple Measurements

Taking measurements is very simple: place the instrument over a supply or exhaust terminal, push the button and wait 10 seconds.

Measuring range and accuracy

Based on a proven control algorithm ensuring excellent repeatability and stability.

Battery Life

A fully charged battery will be enough for at least 12 hours of fan operation and measurements at 75m3/h.

Affordable

Accessible pricing structure with kit upgrades available upon request

What is the FlowFinder-mk2?

The FlowFinder®mk2 is designed for accurate air flow measurements to balance and commission mechanical ventilation systems. The measuring principle of the FlowFinder®mk2 is based on the zero pressure compensation method. With this method the resistance of the measuring instrument is compensated for by means of a controlled fan.

Research has proven the zero pressure compensation method to be the most accurate way of measuring air flows of supply and exhaust ornaments of various shapes and sizes.

Why measure ventilation flow rates?

Ventilation is the process of removing stale polluted indoor air and replacing it with fresh air from outside. Ensuring that the ventilation system in a home is working as expected is incredibly important in any building and is included in Part F of the building regulations.

Commissioning

Requirement F1(2) of the Building Regulations (Section 4 of Part F) stipulates that all fixed mechanical ventilation systems must be commissioned by testing.

Balancing

Continuous ventilation systems should be adjusted and balanced to ensure the designed air flow rates are being met in each room.

Adjustments

When commissioning a system all ventilation supply and extract points should be tested and adjusted to confirm that the system is performing as intended.

System efficiency

A well-functioning ventilation system is vital to removing air pollutants such as CO₂ and particulates as well as moisture and bacteria.

Who is the FlowFinder-mk2 designed for?

The FlowFinder-mk2 is ideal for anyone involved in ventilation testing.

Blower door fan in a doorway

Air Tightness Testers

Building management system

Building Managers

Building surveyor in a hard hat writing on clipboard

Building Surveyors

Energy assessor showing identification at front door

Energy Assessors

New build housing construction site

House Builders

Cavity wall insulation being injected into a wall

Insulation Installers

Property manager at front door

Property Asset Managers

Retrofit coordinator measuring a room

Retrofit Coordinators

Frequently Asked Questions

How often should the FlowFinder-mk2 be calibrated?
It is recommended that your equipment is calibrated every 12 months.
How long is the manufacturers product guarantee?
The manufacturer's warranty on the FF-mk2 is 12 months. Any modifications to the product will void the warranty.
